8KW,15KW,17KW Heating and Cooling water to water Heat Pump

Product Categories
Guangdong TRT Energy Saving Equipment Co.,LTD
Contact Now

8KW,15KW,17KW Heating and Cooling water to water Heat Pump

  • 1
  • 2

Brand Name : TRT or OEM

Model Number : TRT-100HC-WWHP

Certification : CE,CB

Place of Origin : China

Price : Negotiable

Payment Terms : TT

Supply Ability : 1000 PCS a month

Delivery Time : 15-20 days

Packaging Details : plywood

MOQ : 1

Contact Now

　 TRT-30HC-WWHP TRT-30HC-WWHP TRT-50HC-WWHP TRT-60HC-WWHP
Body size(L*W*H) 810*635*1000 810*635*1000 810*635*1000 810*635*1000
Compressor Copeland ZW34KAE*1 Copeland ZW34KAE*1 Copeland ZW61KAE*1 Copeland ZW72KAE*1
Refrigerant R407C/1.8kg*1 R407C/1.8kg*1 R407C/2.4kg*1 R407C/2,8kg*1
Power Supply 220V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Condenser Tube in Tubeφ42 Tube in Tubeφ42 Tube in Tubeφ42 Tube in Tubeφ42
φ42*3 Meter φ42*3 Meter φ42*5 Meter φ42*6 Meter
Evaporator Shell and Tubeφ140 Shell and Tubeφ140 Shell and Tubeφ168 Shell and Tubeφ219
68-φ9.52*500 68-φ9.52*500 88-φ9.52*500 104-φ9.52*500
Liquid Storage Tank 145VW-B04-A*1 145VW-B04-A*1 145VW-B04-A*1 145VW-B04-A*1
Gas-liquid separator LF8W5A-03A*1 LF8W5A-03A*1 KFR120WLG-A*1 KFR120WLG-A*1
Thermostatic expansion valve Danfoss3RT*1 Danfoss3RT*1 Danfoss5RT*1 Danfoss6RT*1
AC Contactor (220V-25A)*1 (220V-18A)*1 (220V-18A)*1 (220V-25A)*1
Controller DF1SS-G5 DF1SS-G5 DF1SS-G5 DF1SS-G5
Low Pressure Switch 0.05/0.15MPa 0.05/0.15MPa 0.05/0.15MPa 0.05/0.15MPa
High Pressure Switch 2.6/3.2MPa 2.6/3.2MPa 2.6/3.2MPa 2.6/3.2MPa
Power Line 3*2.5mm2 3*2.5mm2+2*1.5mm2 3*4mm2+2*2.5mm2 3*6mm2+2*2.5mm2
cooling condition:water source side inlet and outlet of the water temperature of 15℃/28℃；Water-using side return and outlet water temperature of 12℃/7℃
Cooling capacity (kW) 7.8 7.8 14.9 16.8
Input Power when cooling(kW) 1.75 1.75 3.12 3.5
Rated Current(A) 8.5 4 6 7
COP(EER) 4.46 4.46 4.78 4.80
Water-using side circulating water flow(m3/H) 1.7 1.7 3.2 3.6
water source circulating water flow (m3/H) 0.8 0.8 1.5 1.7
Heating condition:water source side inlet and outlet of the water temperature of 15℃/10℃；Water-using side return and outlet water temperature of 40℃/45℃
Heating Capacity(kW) 10.6 10.6 18.9 22.1
Input Power when heating(kW) 2.37 2.37 4.19 4.9
Rated Current(A) 11 5 8 9
COP 4.47 4.47 4.51 4.51
Water-using side circulating water flow(m3/H) 2.3 2.3 4.1 4.8
water source circulating water flow(m3/H) 1.8 1.8 3.2 3.7
Pipe size (mm) Water-using side / water source DN25/DN32 DN25/DN32 DN25/DN32 DN25/DN32
Waterproof Grade IPX4 IPX4 IPX4 IPX4
Anti-electric shock Rate I I I I
Noise(dB(A)) ≤55 ≤55 ≤58 ≤58
Net weight(kg) 125 125 145 155
Gross weight(kg) 135 135 155 165






Description:
1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.

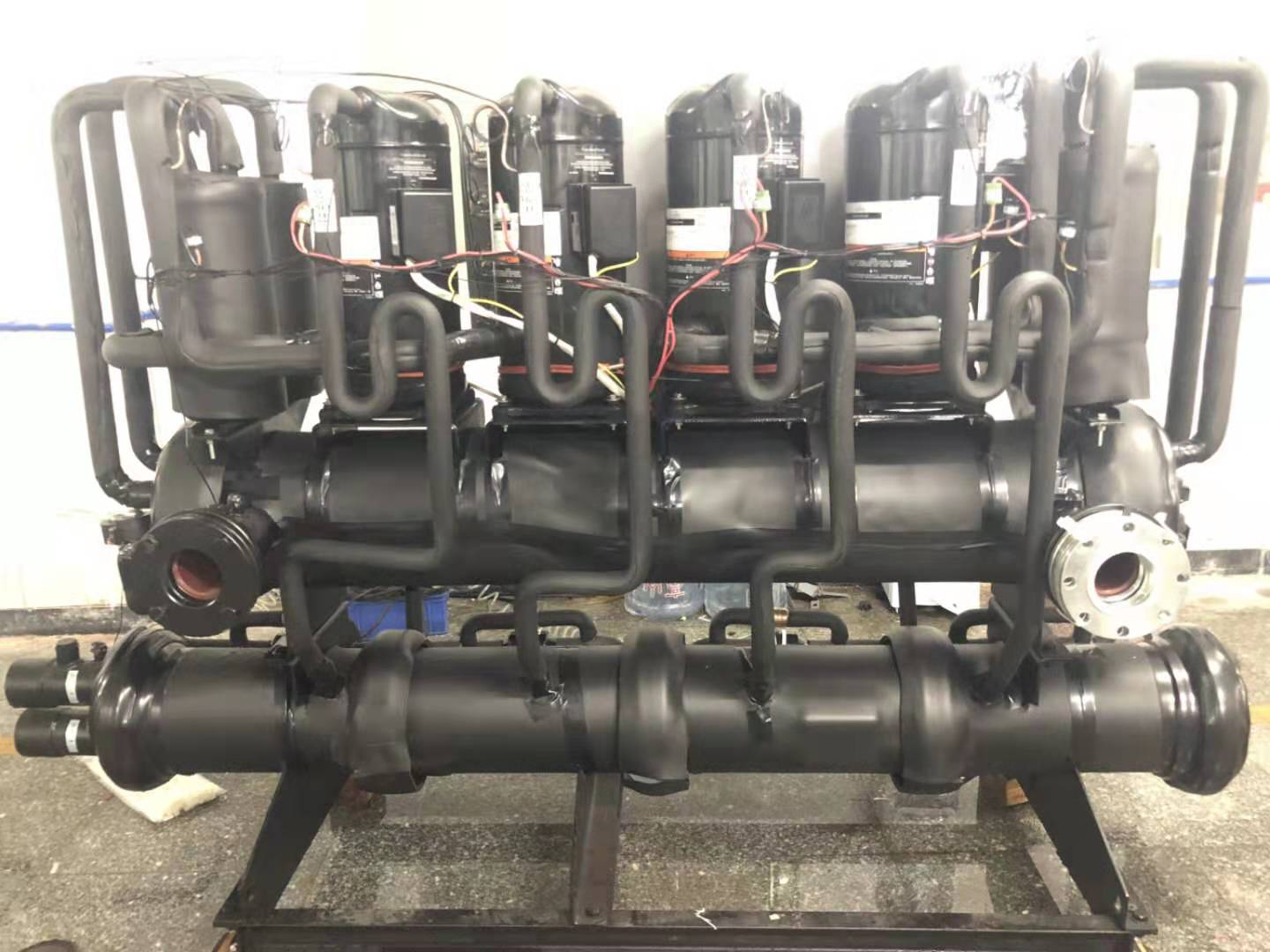

Product inner details:
8KW,15KW,17KW Heating and Cooling water to water Heat Pump

8KW,15KW,17KW Heating and Cooling water to water Heat Pump

8KW,15KW,17KW Heating and Cooling water to water Heat Pump


Welcome to visit our website, if you are interested in our heat pumps,please send inquiry to us, we will give you our best support ASAP.


China 8KW,15KW,17KW Heating and Cooling water to water Heat Pump wholesale

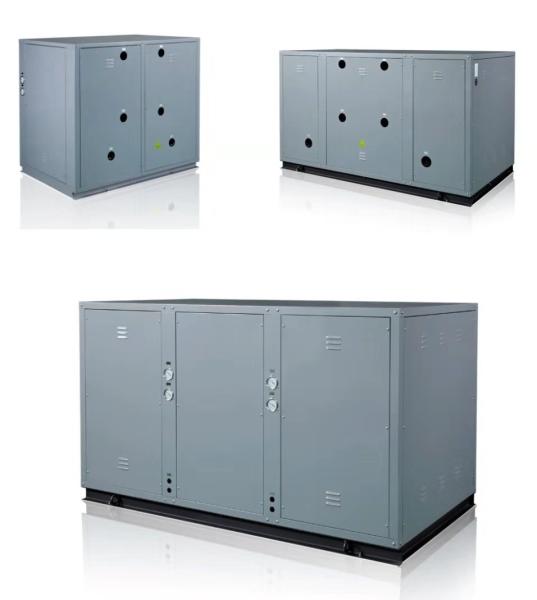

8KW,15KW,17KW Heating and Cooling water to water Heat Pump Images
